Capabilities
Special Mission Modifications
Avcon designs and certifies purpose-built aircraft modifications that expand what your platform can do — wherever the mission takes you.
Mission-Ready Solutions
Purpose-Built for the Mission
For more than 50 years, Avcon has translated demanding mission requirements into certified airframe solutions. Our engineers integrate sensors, communications, and structural systems with the precision your operation demands.

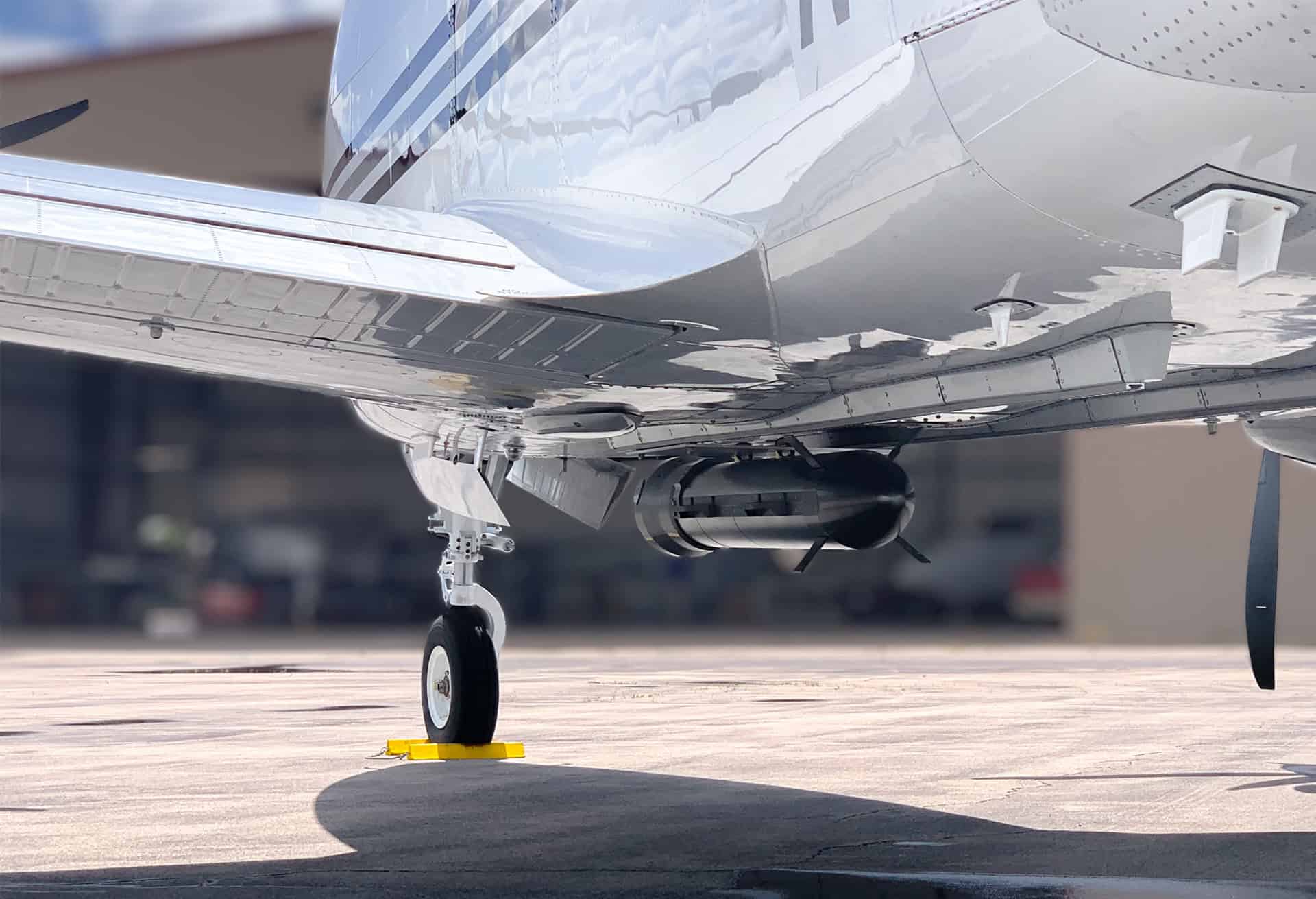

Avcon modifies fixed-wing platforms to carry electro-optical/infrared (EO/IR) sensor payloads, datalinks, and mission-management systems. We engineer nose radomes, belly pods, and wing stations that maintain airworthiness while maximizing sensor field of view and line-of-sight performance.
Precision geospatial data starts with a stable, well-certified camera platform. Avcon installs camera ports, vibration-isolated sensor mounts, and mission-power systems that meet the tight positional accuracy requirements of photogrammetric survey, LiDAR, and hyperspectral imaging operations.
Coastline protection, fisheries enforcement, and search operations require aircraft modified for extended overwater endurance. Avcon integrates surface-search radar, extended-range fuel systems, and direction-finding equipment on turboprop platforms.
Avcon modifies platforms for SAR missions with enhanced navigation, communications, and long-range endurance. Modifications include HF radio installations, night-vision compatible lighting, cargo-door provisions, and reinforced observer windows — all fully FAA-certified.
Research agencies rely on highly modified aircraft to collect atmospheric, ecological, and geophysical data. Avcon supports these programs with specialized sensor ports, atmospheric sampling system installations, and mission-power architectures.
Law enforcement aviation units depend on purpose-configured aircraft to conduct surveillance, track targets, and coordinate ground forces. Avcon installs observation windows, thermal imaging systems, digital downlink equipment, and extended-range fuel systems — all maintained under our FAA Part 145 Repair Station authority.
Platform Flexibility
Avcon holds STCs across Beechcraft, Cessna, Learjet, Piper, Dassault, and other platforms. If your mission requires a different aircraft type, our engineering team can evaluate new platforms for STC development.
Tell Us About Your Mission
Our engineering team works directly with customers to scope modifications, identify the right platform, and chart a path to certification. Let's start the conversation.
FAA-Approved Certifications
STC List
132 FAA-approved Supplemental Type Certificates across 7 aircraft manufacturers.
Beechcraft37
| STC Number | Aircraft Models | Description | Mission |
|---|---|---|---|
| SA11298DS | B300, B300C | 400 Amp Starter Generator & Power Busses (-60 & -67 Engines) | Avionics |
| SA2795CE | 200, 200CT, 200T, B200, B200C, B200CT, 300, B300, B300C | Optical Glass Window in Emergency Exit Door | ISR |
| SA2788CE | B90, C90, C90A, E90 | Optical Glass Window in Emergency Exit Door | ISR |
| SA2675CE | 100, A100A, B100 | Hinged Nose Compartment Door | Structural |
| SA2464CE | 300 | Provisions for magnetometer | ISR |
| SA2463CE | 300 | Provisions for tandem / dual cameras | ISR |
| SA2462CE | 300 | Provisions for Daedalus Scanner | ISR |
| SA2449CE | 100, A100, A100A, B100 | Removable Baggage Compartment | Structural |
| SA2430CE | 200, 200CT, 200T, B200, B200C, B200CT | Installation of provisions for a magnetometer | ISR |
| SA2429CE | 200, 200C, 200CT, 200T, A200, A200C, A200CT, B200, B200C, B200CT, B200T, B200GT, B200CGT, 300, B300, B300C, 100, A100, A100A, A100C, B100 | Provisions for the installation of tandem cameras | ISR |
| SA2428CE | 200, 200CT, 200T, B200, B200C, B200CT, B300 | Installation of provisions for a scanner | ISR |
| SA2427CE | 200, 200C, 200CT, 200T, A200, A200C, A200CT, B200, B200C, B200CT, B200T, 300 | Honeywell YG-1761B LaserNav Inertial Navigation System | Avionics |
| SA2300CE | 200, 200C, B200, B200C, A200, A200C, A200CT, B300, B300C | Removable External Baggage Compartment Pod | Structural |
| SA2265CE | 200, 200C, B200, B200C | Left Emergency Exit | Structural |
| SA2225CE | F90 | C39A Stretchers | Interior |
| SA2192CE | 200, 200T, A200, B200, B200T, B200GT, 300, 300LW | Cargo Door Teardrop Window | Structural |
| SA2104CE | 100, A100, A100A, A100C, B100 | External Baggage Compartment Pod | Structural |
| SA2004CE | 200, 200C, 200CT, 200T, A200, A200CT, B200, B200C, B200CT, B200T | Flight Inspection Console Provisions | Special Mission |
| SA2003CE | 65-90, 65-A90, B90, C90, E90 | Flight Inspection Console Provisions | Special Mission |
| SA1854CE | 200, 200C, 200CT, 200T, A200, A200C, A200CT, B200, N200C, B200CT, B200T | Installation of inverter rack mounted on seat tracks | Special Mission |
| SA1853CE | 65, A65, 65-80, 65-80A, 65-B80, 65-88, 65-90, 65-A90, 70, B90, C90, E90, H90 | Installation of inverter rack mounted on seat tracks | Special Mission |
| SA1852CE | 99, 99A, A99, A99A, B99, C99, 100, A100, A100A, A100C, B100 | Installation of inverter rack mounted on seat tracks | Special Mission |
| SA1829CE | B200T | Cloud Physics Probe | ISR |
| SA1726CE | B90, C90, E90, F90, C90A, C90GT, C90GTI | Camera Window with Sliding Door Cover & Drift Sight | ISR |
| SA1714CE | 200, A200, 200T, B200, B200C, B200CT, B200T | Camera Window KA-79 Camera Mount Structural Plug | ISR |
| SA1669CE | 200, A200, 200CT | Sierra Electronic Console Seat Rails | Special Mission |
| SA1648CE | 200, A200, 200T, B200, B200C, B200CT, B200T, 200C, 200CT, A200C, A200CT, 300 | Camera Window Intervalometer Drift Sight | ISR |
| SA1647CE | 200, A200, 200T | Litton LTN-72 / LTN-76 Inertial Navigation System | Avionics |
| SA1632CE | 200, A200, 200T | Installation of portable airway checking equipment rack on existing seat rails | Special Mission |
| SA1631CE | 99, A99, 100, A100, B100 | Installation of portable airway checking equipment rack on existing seat rails | Special Mission |
| SA1630CE | 65-A90, B90, C90, E90 | Installation of portable airway checking equipment rack on existing seat rails | Special Mission |
| SA1591CE | 200, A200, 200T | Sierra Utility Flight Inspection Equipment Rack | Special Mission |
| SA03698AT | 200, 200C, B200, B200C, B200GT, B200CGT, B300, B300C | Supplemental DC Power Isolated Instrument Bus | Avionics |
| SA01581WI | B300 | Communication & Navigation Antennae on Upper & Lower Fuselage | Avionics |
| SA00415WI | B90, C90, C90A, E90, H90, 100, A100, A100A, A100C, B100, 200, 200T, A200, B200, B200T, 300, 300LW, B300 | Baggage Door | Structural |
| SA00170WI | 100, A100, A100A, A100C, B100 | Installation of camera provisions and camera window | ISR |
| SA01902WI | 200, 200C, 200CT, 300, A200, A200C, A200CT, B200, B200C, B200CGT, B200CT, B200GT, B200T, B300, B300C | Installation of Fuselage Underside Rail Mounting Provisions for carriage of external payload | Special Mission |
Bombardier1
| STC Number | Aircraft Models | Description | Mission |
|---|---|---|---|
| SA11298DS | Challenger CL-600-2B16 (CL-604 variant) | (Dual Camera / Sensor) Provisions for Special Missions Equipment | ISR |
British Aerospace1
| STC Number | Aircraft Models | Description | Mission |
|---|---|---|---|
| SA1759CE | HS125-700A | Portable electronic console installation on existing seat rails (structural provisions only) | Special Mission |
Cessna28
| STC Number | Aircraft Models | Description | Mission |
|---|---|---|---|
| SA2040CE | 550 | Dual or Single Camera & Optional Navigation Sight | ISR |
| SA01975WI | 208, 208B (Caravan) | Dual and Single Oversized Camera Ports with option to install Sliding Door System (Includes Electrical Sensor Provisions) | ISR |
| ST01583WI | 550 | Special Mission Equipment Revision | Special Mission |
| SA3458WE | 421C | Camera Window with option to allow Unpressurized Operations when Optical Glass is removed and Camera Door is open | ISR |
| SA2091CE | 402 | Installation of flight inspection console on seat track (structural provisions only) | Special Mission |
| SA2039CE | 551 | Dual or Single Camera & Optional Navigation Sight | ISR |
| SA1999CE | 550 | Sierra Flight Inspection Console Structural Provisions | Special Mission |
| SA1992CE | 550 | Installation of structural provisions for flight inspection console mounted on seat tracks | Special Mission |
| SA1982CE | 551 | Passenger Shoulder Harness | Interior |
| SA1891CE | 550 | Passenger Shoulder Harness | Interior |
| SA1886CE | 551 | 36" Cargo Door | Structural |
| SA1885CE | 550 | 36" Cargo Door | Structural |
| SA1743CE | 500, 550 | Portable electronic console installation on existing seat rails | Special Mission |
| SA1742CE | 501, 551 | Portable electronic console installation on existing seat rails | Special Mission |
| SA1719CE | 441 | Camera Port Optical Glass for Dual Aerial Camera | ISR |
| SA1718CE | 441 | Installation of Litton LTN-76 Inertial Navigation System with Photogrammetric Integrated Control System (PICS) | Avionics |
| SA1711CE | 500, 550 | Sierra Utility Flight Inspection Equipment Installation | Special Mission |
| SA1710CE | 501, 551 | Sierra Utility Flight Inspection Equipment Installation | Special Mission |
| SA1653CE | 500 | Provisions for a Litton IFIRS camera in the tailcone | ISR |
| SA1640CE | 500, 550 | Installation of Sierra Electronics rack in aft baggage compartment | Special Mission |
| SA1639CE | 500, 550 | Sierra Electronic Console | Special Mission |
| SA1580CE | 501 | Tailcone Baggage Compartment | Structural |
| SA1579CE | 500 | Tailcone Baggage Compartment | Structural |
| SA1535CE | 501, 551 | Side Facing Jump Seat | Interior |
| SA1534CE | 500, 550 | Side Facing Jump Seat | Interior |
| SA1501CE | 402B | Sierra Utility Flight Inspection Equipment Rack | Special Mission |
| SA1424CE | 441 | Sierra Electronics Console | Special Mission |
| SA1375CE | 421, 421A, 421B, 421C | Reduce Height Swivel Seat | Interior |
Dassault8
| STC Number | Aircraft Models | Description | Mission |
|---|---|---|---|
| SA1328SO | Fan Jet Falcon, Series D, Series E, Series F | Replacement feeder tank lower door and backing plate installation | Structural |
| SA849SO | Fan Jet Falcon, Series D, Series E, Series F | PPG Industries Windshields | Structural |
| SA875SW | Fan Jet Falcon Series C, D, E, F | Jump seat installation | Interior |
| SA2480CE | Fan Jet Falcon, Series D, Series E | Additional crew seat installation on inboard seat tracks | Interior |
| SA2132CE | Fan Jet Falcon Series C, D, E, F, G; Mystere Falcon 200 | Electronic Console provisions installed on aircraft seat tracks (structural provisions only) | Special Mission |
| SA1806SW | Fan Jet Falcon, Series C, D, E, F | Co-Pilot Brake Modification | Structural |
| SA1788SW | Fan Jet Falcon C, D, E, F | Replace Main Landing Gear Door Bracket | Structural |
| SA1666SW | Fan Jet Falcon | Nose Wheel Steering | Structural |
Learjet52
| STC Number | Aircraft Models | Description | Mission |
|---|---|---|---|
| ST02455SE | 35, 35A, 36, 36A, 60 | Dual GTX-3000 Transponders, GDL-88 ADS-B (In/Out) with WAAS GPS and Flight Stream 210 Bluetooth | Avionics |
| ST02417SE | 24-24F, 25-25F, 28, 29, 35, 35A, 36, 36A | Replacement Stall Warning Vertical Accelerometer | Avionics |
| ST02416SE | 24-24F, 25-25F, 28, 29, 31, 35, 35A, 36, 36A, 55, 55B | Replacement Rate Gyro installation | Avionics |
| ST02230SE | 24-24F, 25-25F, 35, 35A, 36, 36A | Dual Garmin GTX-33ES / 335R / 345R Mode-S transponders and Garmin GTN 625/650/725/750 GPS units for ADS-B compliance | Avionics |
| ST02097SE | 24-24F, 25-25F, 28, 29 | Replacement circuit boards for the FC-110 autopilot | Avionics |
| ST01842SE | 24, 25, 28, 29, 35, 36 | Sandel Avionics HSI and ADI | Avionics |
| ST01791WI | 60 | Collins AHC-3000A Series Attitude Heading Computer (AHRS) | Avionics |
| ST01783WI | 25-25F, 31, 31A, 35, 35A, 36, 36A, 55, 55B, 55C, 60 | Internal Wing Hardpoints | Structural |
| ST01733WI | 24, 24A, 24B, 24D, 24E, 24F, 25, 25B, 25C, 25D, 25F | Quiet Lear Hushkit or Avcon Noise Suppressor installation | Structural |
| ST01272WI | 35A (S/N 35A611 only) | Provisions for Special Mission Equipment and modification of extended range tip tanks to incorporate a dry bay | Special Mission |
| ST01195WI | 24-24F, 25-25F, 28, 29, 35, 35A, 36, 36A | Rosemount Pitot/Static Probes for RVSM | Avionics |
| ST00912WI | 31, 35, 35A, 36, 36A | Installation of the Model 31A interior as a refurbishment to other Learjet models | Interior |
| ST00615WI | 35, 35A, 36, 36A | Install extended range tip tanks | Structural |
| ST00613WI | 35, 35A, 36, 36A | Increase landing weight to 16,000 pounds | Structural |
| ST00612WI | 35, 35A, 36, 36A | Increase wing/tip zero fuel weight to 14,500 pounds | Structural |
| ST00611WI | 35, 35A, 36, 36A | Increase takeoff weight to 19,600 pounds | Structural |
| ST00610WI | 35, 35A, 36, 36A | Increase landing weight to 16,000 pounds with extended range tip tanks | Structural |
| ST00609WI | 35, 35A, 36, 36A | Increase zero wing and tip fuel weights to 14,500 pounds with extended range tip tanks | Structural |
| ST00608WI | 35, 35A, 36, 36A | Increase takeoff weight to 19,600 pounds with extended range tip tanks | Structural |
| ST00585WI | 35, 35A, 36, 36A | Install plugs in place of windows and on top of airplane | Structural |
| ST00564WI | 35, 35A, 36, 36A | Increased Gross Takeoff Weight, Zero Fuel Weight, and Increased Landing Weight | Structural |
| ST00563WI | 35, 35A, 36, 36A | Install Increased Fuel Capacity, Increased Gross Weight, Increased Zero Fuel Weight, and Increased Landing Weight | Structural |
| ST00510WI | 35, 35A, 36, 36A | Tip Tank Baggage Compartments | Structural |
| ST00450WI | 35, 35A, 36, 36A | Installation of extended wingtip fuel tanks and underwing stores | Structural |
| ST00432WI | 35, 35A, 36, 36A | Avcon Fins — Aft Body Strakes for drag efficiency and aircraft stability | Structural |
| ST00294WI | 31, 31A | Installation of a gravel runway operations kit | Structural |
| ST00109WI | 35, 35A, 36, 36A | Install pressure cans over scanners | ISR |
| ST00095WI | 35, 35A, 36, 36A | Install equipment racks in cabin | Special Mission |
| ST00094WI | 35, 35A, 36, 36A | Install a forward-looking infrared (FLIR) camera turret | ISR |
| ST00090WI | 31A | Equipment Rack | Special Mission |
| SA5516SW | 24, 24B, 24D | Sperry SPZ500LR Automatic Flight Control System | Avionics |
| SA2715SW | 23, 24-24F, 25-25F | Access Doors in Engine Nacelle | Structural |
| SA2576CE | 35A, 36A | Installation of Marquardt target towing system (high speed operation) | Special Mission |
| SA2530CE | 23 | Structural provision for Daedalus IR scanner | ISR |
| SA2481CE | 35, 35A, 36, 36A | 3000psi Hydraulic System | Structural |
| SA2479CE | 35, 35A, 36, 36A | Installation of dual openable hatches on the belly of the fuselage | ISR |
| SA2478CE | 35, 35A, 36, 36A | Provisions for a towing arm on the fuselage belly | Special Mission |
| SA2476CE | 35, 35A | Installation of Learjet Model 36A fuselage fuel cells | Structural |
| SA2475CE | 35, 35A, 36, 36A | Installation of provisions for a cabin centerline mounted camera with an in-flight opening door | ISR |
| SA2446SW | 23, 24-24F, 25-25F, 28, 29, 35, 35A, 36, 36A | Installation of cabin door closing system | Structural |
| SA2437CE | 24-24F, 25-25F, 35, 35A, 36, 36A | Installation of provisions for Infra-Red Scanner | ISR |
| SA2355CE | 35, 35A, 36, 36A | Equipment Console | Special Mission |
| SA2351CE | 25-25F, 35, 35A | Installation of provisions for chaff dispenser and ECM equipment consoles | Special Mission |
| SA2266CE | 35, 35A, 36, 36A | Installation of camera equipment rack on existing seat rails | ISR |
| SA2026CE | 35, 35A, 36, 36A | Dual Camera installation | ISR |
| SA2018CE | 35, 35A, 36, 36A | Attachment of Marquardt Target Towing System | Special Mission |
| SA2007CE | 35, 35A, 36, 36A | Installation of 9KVA 3-phase inverter system | Special Mission |
| SA2005CE | 35, 35A, 36, 36A | Flight inspection console installation (structural provisions only) | Special Mission |
| SA1912CE | 36, 36A | Installation of provisions for Garnet radar and equipment racks | ISR |
| SA1515CE | 35, 35A, 36, 36A | Belly Radome installation and structural provisions for an airborne surveillance radar | ISR |
| SA1489CE | 25-25F, 28, 29, 31, 31A, 35, 35A, 36, 36A | Replacement of 24" Executive Door with 36" Cargo Door | Structural |
| SA00179WI | 24, 25, 35, 36 | Installation of pressure dome provision for an infrared scanner in the camera door | ISR |
Piper5
| STC Number | Aircraft Models | Description | Mission |
|---|---|---|---|
| SA2384CE | PA-31-350 | Equipment console, two observation windows, modified landing/taxi light system, pitot tube relocation, and provisions for FLIR | ISR |
| SA1832CE | PA-42 | Sierra electronic console rack installed on existing aircraft seat tracks | Special Mission |
| SA1751CE | PA-31T2 | External Baggage Pod installation | Structural |
| SA1628CE | PA-44-180 | Electronics Rack provisions | Special Mission |
| SA1617CE | PA-31P, PA-31T, PA-31T1 | Cargo Pod installation | Structural |
Avionics & Navigation15
| STC Number | Manufacturer | Aircraft Models | Description |
|---|---|---|---|
| SA11298DS | Beechcraft | B300, B300C | 400 Amp Starter Generator & Power Busses (-60 & -67 Engines) |
| SA2427CE | Beechcraft | 200, 200C, 200CT, 200T, A200, A200C, A200CT, B200, B200C, B200CT, B200T, 300 | Honeywell YG-1761B LaserNav Inertial Navigation System |
| SA1647CE | Beechcraft | 200, A200, 200T | Litton LTN-72 / LTN-76 Inertial Navigation System |
| SA03698AT | Beechcraft | 200, 200C, B200, B200C, B200GT, B200CGT, B300, B300C | Supplemental DC Power Isolated Instrument Bus |
| SA01581WI | Beechcraft | B300 | Communication & Navigation Antennae on Upper & Lower Fuselage |
| SA1718CE | Cessna | 441 | Installation of Litton LTN-76 Inertial Navigation System with Photogrammetric Integrated Control System (PICS) |
| ST02455SE | Learjet | 35, 35A, 36, 36A, 60 | Dual GTX-3000 Transponders, GDL-88 ADS-B (In/Out) with WAAS GPS and Flight Stream 210 Bluetooth |
| ST02417SE | Learjet | 24-24F, 25-25F, 28, 29, 35, 35A, 36, 36A | Replacement Stall Warning Vertical Accelerometer |
| ST02416SE | Learjet | 24-24F, 25-25F, 28, 29, 31, 35, 35A, 36, 36A, 55, 55B | Replacement Rate Gyro installation |
| ST02230SE | Learjet | 24-24F, 25-25F, 35, 35A, 36, 36A | Dual Garmin GTX-33ES / 335R / 345R Mode-S transponders and Garmin GTN 625/650/725/750 GPS units for ADS-B compliance |
| ST02097SE | Learjet | 24-24F, 25-25F, 28, 29 | Replacement circuit boards for the FC-110 autopilot |
| ST01842SE | Learjet | 24, 25, 28, 29, 35, 36 | Sandel Avionics HSI and ADI |
| ST01791WI | Learjet | 60 | Collins AHC-3000A Series Attitude Heading Computer (AHRS) |
| ST01195WI | Learjet | 24-24F, 25-25F, 28, 29, 35, 35A, 36, 36A | Rosemount Pitot/Static Probes for RVSM |
| SA5516SW | Learjet | 24, 24B, 24D | Sperry SPZ500LR Automatic Flight Control System |
ISR / Surveillance32
| STC Number | Manufacturer | Aircraft Models | Description |
|---|---|---|---|
| SA2795CE | Beechcraft | 200, 200CT, 200T, B200, B200C, B200CT, 300, B300, B300C | Optical Glass Window in Emergency Exit Door |
| SA2788CE | Beechcraft | B90, C90, C90A, E90 | Optical Glass Window in Emergency Exit Door |
| SA2464CE | Beechcraft | 300 | Provisions for magnetometer |
| SA2463CE | Beechcraft | 300 | Provisions for tandem / dual cameras |
| SA2462CE | Beechcraft | 300 | Provisions for Daedalus Scanner |
| SA2430CE | Beechcraft | 200, 200CT, 200T, B200, B200C, B200CT | Installation of provisions for a magnetometer |
| SA2429CE | Beechcraft | 200, 200C, 200CT, 200T, A200, A200C, A200CT, B200, B200C, B200CT, B200T, B200GT, B200CGT, 300, B300, B300C, 100, A100, A100A, A100C, B100 | Provisions for the installation of tandem cameras |
| SA2428CE | Beechcraft | 200, 200CT, 200T, B200, B200C, B200CT, B300 | Installation of provisions for a scanner |
| SA1829CE | Beechcraft | B200T | Cloud Physics Probe |
| SA1726CE | Beechcraft | B90, C90, E90, F90, C90A, C90GT, C90GTI | Camera Window with Sliding Door Cover & Drift Sight |
| SA1714CE | Beechcraft | 200, A200, 200T, B200, B200C, B200CT, B200T | Camera Window KA-79 Camera Mount Structural Plug |
| SA1648CE | Beechcraft | 200, A200, 200T, B200, B200C, B200CT, B200T, 200C, 200CT, A200C, A200CT, 300 | Camera Window Intervalometer Drift Sight |
| SA00170WI | Beechcraft | 100, A100, A100A, A100C, B100 | Installation of camera provisions and camera window |
| SA11298DS | Bombardier | Challenger CL-600-2B16 (CL-604 variant) | (Dual Camera / Sensor) Provisions for Special Missions Equipment |
| SA2040CE | Cessna | 550 | Dual or Single Camera & Optional Navigation Sight |
| SA01975WI | Cessna | 208, 208B (Caravan) | Dual and Single Oversized Camera Ports with option to install Sliding Door System (Includes Electrical Sensor Provisions) |
| SA3458WE | Cessna | 421C | Camera Window with option to allow Unpressurized Operations when Optical Glass is removed and Camera Door is open |
| SA2039CE | Cessna | 551 | Dual or Single Camera & Optional Navigation Sight |
| SA1719CE | Cessna | 441 | Camera Port Optical Glass for Dual Aerial Camera |
| SA1653CE | Cessna | 500 | Provisions for a Litton IFIRS camera in the tailcone |
| ST00109WI | Learjet | 35, 35A, 36, 36A | Install pressure cans over scanners |
| ST00094WI | Learjet | 35, 35A, 36, 36A | Install a forward-looking infrared (FLIR) camera turret |
| SA2530CE | Learjet | 23 | Structural provision for Daedalus IR scanner |
| SA2479CE | Learjet | 35, 35A, 36, 36A | Installation of dual openable hatches on the belly of the fuselage |
| SA2475CE | Learjet | 35, 35A, 36, 36A | Installation of provisions for a cabin centerline mounted camera with an in-flight opening door |
| SA2437CE | Learjet | 24-24F, 25-25F, 35, 35A, 36, 36A | Installation of provisions for Infra-Red Scanner |
| SA2266CE | Learjet | 35, 35A, 36, 36A | Installation of camera equipment rack on existing seat rails |
| SA2026CE | Learjet | 35, 35A, 36, 36A | Dual Camera installation |
| SA1912CE | Learjet | 36, 36A | Installation of provisions for Garnet radar and equipment racks |
| SA1515CE | Learjet | 35, 35A, 36, 36A | Belly Radome installation and structural provisions for an airborne surveillance radar |
| SA00179WI | Learjet | 24, 25, 35, 36 | Installation of pressure dome provision for an infrared scanner in the camera door |
| SA2384CE | Piper | PA-31-350 | Equipment console, two observation windows, modified landing/taxi light system, pitot tube relocation, and provisions for FLIR |
Interior & Completions9
| STC Number | Manufacturer | Aircraft Models | Description |
|---|---|---|---|
| SA2225CE | Beechcraft | F90 | C39A Stretchers |
| SA1982CE | Cessna | 551 | Passenger Shoulder Harness |
| SA1891CE | Cessna | 550 | Passenger Shoulder Harness |
| SA1535CE | Cessna | 501, 551 | Side Facing Jump Seat |
| SA1534CE | Cessna | 500, 550 | Side Facing Jump Seat |
| SA1375CE | Cessna | 421, 421A, 421B, 421C | Reduce Height Swivel Seat |
| SA875SW | Dassault | Fan Jet Falcon Series C, D, E, F | Jump seat installation |
| SA2480CE | Dassault | Fan Jet Falcon, Series D, Series E | Additional crew seat installation on inboard seat tracks |
| ST00912WI | Learjet | 31, 35, 35A, 36, 36A | Installation of the Model 31A interior as a refurbishment to other Learjet models |
Special Mission Equipment37
| STC Number | Manufacturer | Aircraft Models | Description |
|---|---|---|---|
| SA2004CE | Beechcraft | 200, 200C, 200CT, 200T, A200, A200CT, B200, B200C, B200CT, B200T | Flight Inspection Console Provisions |
| SA2003CE | Beechcraft | 65-90, 65-A90, B90, C90, E90 | Flight Inspection Console Provisions |
| SA1854CE | Beechcraft | 200, 200C, 200CT, 200T, A200, A200C, A200CT, B200, N200C, B200CT, B200T | Installation of inverter rack mounted on seat tracks |
| SA1853CE | Beechcraft | 65, A65, 65-80, 65-80A, 65-B80, 65-88, 65-90, 65-A90, 70, B90, C90, E90, H90 | Installation of inverter rack mounted on seat tracks |
| SA1852CE | Beechcraft | 99, 99A, A99, A99A, B99, C99, 100, A100, A100A, A100C, B100 | Installation of inverter rack mounted on seat tracks |
| SA1669CE | Beechcraft | 200, A200, 200CT | Sierra Electronic Console Seat Rails |
| SA1632CE | Beechcraft | 200, A200, 200T | Installation of portable airway checking equipment rack on existing seat rails |
| SA1631CE | Beechcraft | 99, A99, 100, A100, B100 | Installation of portable airway checking equipment rack on existing seat rails |
| SA1630CE | Beechcraft | 65-A90, B90, C90, E90 | Installation of portable airway checking equipment rack on existing seat rails |
| SA1591CE | Beechcraft | 200, A200, 200T | Sierra Utility Flight Inspection Equipment Rack |
| SA01902WI | Beechcraft | 200, 200C, 200CT, 300, A200, A200C, A200CT, B200, B200C, B200CGT, B200CT, B200GT, B200T, B300, B300C | Installation of Fuselage Underside Rail Mounting Provisions for carriage of external payload |
| SA1759CE | British Aerospace | HS125-700A | Portable electronic console installation on existing seat rails (structural provisions only) |
| ST01583WI | Cessna | 550 | Special Mission Equipment Revision |
| SA2091CE | Cessna | 402 | Installation of flight inspection console on seat track (structural provisions only) |
| SA1999CE | Cessna | 550 | Sierra Flight Inspection Console Structural Provisions |
| SA1992CE | Cessna | 550 | Installation of structural provisions for flight inspection console mounted on seat tracks |
| SA1743CE | Cessna | 500, 550 | Portable electronic console installation on existing seat rails |
| SA1742CE | Cessna | 501, 551 | Portable electronic console installation on existing seat rails |
| SA1711CE | Cessna | 500, 550 | Sierra Utility Flight Inspection Equipment Installation |
| SA1710CE | Cessna | 501, 551 | Sierra Utility Flight Inspection Equipment Installation |
| SA1640CE | Cessna | 500, 550 | Installation of Sierra Electronics rack in aft baggage compartment |
| SA1639CE | Cessna | 500, 550 | Sierra Electronic Console |
| SA1501CE | Cessna | 402B | Sierra Utility Flight Inspection Equipment Rack |
| SA1424CE | Cessna | 441 | Sierra Electronics Console |
| SA2132CE | Dassault | Fan Jet Falcon Series C, D, E, F, G; Mystere Falcon 200 | Electronic Console provisions installed on aircraft seat tracks (structural provisions only) |
| ST01272WI | Learjet | 35A (S/N 35A611 only) | Provisions for Special Mission Equipment and modification of extended range tip tanks to incorporate a dry bay |
| ST00095WI | Learjet | 35, 35A, 36, 36A | Install equipment racks in cabin |
| ST00090WI | Learjet | 31A | Equipment Rack |
| SA2576CE | Learjet | 35A, 36A | Installation of Marquardt target towing system (high speed operation) |
| SA2478CE | Learjet | 35, 35A, 36, 36A | Provisions for a towing arm on the fuselage belly |
| SA2355CE | Learjet | 35, 35A, 36, 36A | Equipment Console |
| SA2351CE | Learjet | 25-25F, 35, 35A | Installation of provisions for chaff dispenser and ECM equipment consoles |
| SA2018CE | Learjet | 35, 35A, 36, 36A | Attachment of Marquardt Target Towing System |
| SA2007CE | Learjet | 35, 35A, 36, 36A | Installation of 9KVA 3-phase inverter system |
| SA2005CE | Learjet | 35, 35A, 36, 36A | Flight inspection console installation (structural provisions only) |
| SA1832CE | Piper | PA-42 | Sierra electronic console rack installed on existing aircraft seat tracks |
| SA1628CE | Piper | PA-44-180 | Electronics Rack provisions |
Structural & Performance39
| STC Number | Manufacturer | Aircraft Models | Description |
|---|---|---|---|
| SA2675CE | Beechcraft | 100, A100A, B100 | Hinged Nose Compartment Door |
| SA2449CE | Beechcraft | 100, A100, A100A, B100 | Removable Baggage Compartment |
| SA2300CE | Beechcraft | 200, 200C, B200, B200C, A200, A200C, A200CT, B300, B300C | Removable External Baggage Compartment Pod |
| SA2265CE | Beechcraft | 200, 200C, B200, B200C | Left Emergency Exit |
| SA2192CE | Beechcraft | 200, 200T, A200, B200, B200T, B200GT, 300, 300LW | Cargo Door Teardrop Window |
| SA2104CE | Beechcraft | 100, A100, A100A, A100C, B100 | External Baggage Compartment Pod |
| SA00415WI | Beechcraft | B90, C90, C90A, E90, H90, 100, A100, A100A, A100C, B100, 200, 200T, A200, B200, B200T, 300, 300LW, B300 | Baggage Door |
| SA1886CE | Cessna | 551 | 36" Cargo Door |
| SA1885CE | Cessna | 550 | 36" Cargo Door |
| SA1580CE | Cessna | 501 | Tailcone Baggage Compartment |
| SA1579CE | Cessna | 500 | Tailcone Baggage Compartment |
| SA1328SO | Dassault | Fan Jet Falcon, Series D, Series E, Series F | Replacement feeder tank lower door and backing plate installation |
| SA849SO | Dassault | Fan Jet Falcon, Series D, Series E, Series F | PPG Industries Windshields |
| SA1806SW | Dassault | Fan Jet Falcon, Series C, D, E, F | Co-Pilot Brake Modification |
| SA1788SW | Dassault | Fan Jet Falcon C, D, E, F | Replace Main Landing Gear Door Bracket |
| SA1666SW | Dassault | Fan Jet Falcon | Nose Wheel Steering |
| ST01783WI | Learjet | 25-25F, 31, 31A, 35, 35A, 36, 36A, 55, 55B, 55C, 60 | Internal Wing Hardpoints |
| ST01733WI | Learjet | 24, 24A, 24B, 24D, 24E, 24F, 25, 25B, 25C, 25D, 25F | Quiet Lear Hushkit or Avcon Noise Suppressor installation |
| ST00615WI | Learjet | 35, 35A, 36, 36A | Install extended range tip tanks |
| ST00613WI | Learjet | 35, 35A, 36, 36A | Increase landing weight to 16,000 pounds |
| ST00612WI | Learjet | 35, 35A, 36, 36A | Increase wing/tip zero fuel weight to 14,500 pounds |
| ST00611WI | Learjet | 35, 35A, 36, 36A | Increase takeoff weight to 19,600 pounds |
| ST00610WI | Learjet | 35, 35A, 36, 36A | Increase landing weight to 16,000 pounds with extended range tip tanks |
| ST00609WI | Learjet | 35, 35A, 36, 36A | Increase zero wing and tip fuel weights to 14,500 pounds with extended range tip tanks |
| ST00608WI | Learjet | 35, 35A, 36, 36A | Increase takeoff weight to 19,600 pounds with extended range tip tanks |
| ST00585WI | Learjet | 35, 35A, 36, 36A | Install plugs in place of windows and on top of airplane |
| ST00564WI | Learjet | 35, 35A, 36, 36A | Increased Gross Takeoff Weight, Zero Fuel Weight, and Increased Landing Weight |
| ST00563WI | Learjet | 35, 35A, 36, 36A | Install Increased Fuel Capacity, Increased Gross Weight, Increased Zero Fuel Weight, and Increased Landing Weight |
| ST00510WI | Learjet | 35, 35A, 36, 36A | Tip Tank Baggage Compartments |
| ST00450WI | Learjet | 35, 35A, 36, 36A | Installation of extended wingtip fuel tanks and underwing stores |
| ST00432WI | Learjet | 35, 35A, 36, 36A | Avcon Fins — Aft Body Strakes for drag efficiency and aircraft stability |
| ST00294WI | Learjet | 31, 31A | Installation of a gravel runway operations kit |
| SA2715SW | Learjet | 23, 24-24F, 25-25F | Access Doors in Engine Nacelle |
| SA2481CE | Learjet | 35, 35A, 36, 36A | 3000psi Hydraulic System |
| SA2476CE | Learjet | 35, 35A | Installation of Learjet Model 36A fuselage fuel cells |
| SA2446SW | Learjet | 23, 24-24F, 25-25F, 28, 29, 35, 35A, 36, 36A | Installation of cabin door closing system |
| SA1489CE | Learjet | 25-25F, 28, 29, 31, 31A, 35, 35A, 36, 36A | Replacement of 24" Executive Door with 36" Cargo Door |
| SA1751CE | Piper | PA-31T2 | External Baggage Pod installation |
| SA1617CE | Piper | PA-31P, PA-31T, PA-31T1 | Cargo Pod installation |
This list represents Avcon's FAA-approved STCs. For complete certification documentation or program-specific inquiries, please contact our engineering team.
End-to-End Integration
The Architecture Behind the Mission
Modern mission aircraft are complex systems of systems. Avcon engineers design the integration architecture, manage the interfaces between subsystems, and carry the program through FAA certification — delivering a fully capable, airworthy aircraft.
01
Avionics & Communication Systems
Avcon installs, interconnects, and certifies avionics suites ranging from glass cockpit upgrades to full mission-management displays. We integrate VHF/UHF radios, satellite communication systems, data links, and navigation architectures that meet the specific communication requirements of each mission role.
02
Sensor Integration & Payload Management
Sensor performance depends as much on installation quality as sensor capability. Avcon designs mechanical and electrical interfaces for EO/IR turrets, radar systems, camera pods, and atmospheric sampling equipment — ensuring structural integrity, thermal management, and signal quality are maintained across the flight envelope.
03
Electrical Power Architecture
Mission payloads place significant demands on aircraft electrical systems. Our engineers design supplemental power generation, power distribution, and load management systems that support high-demand mission electronics without compromising aircraft electrical system certification or reliability.
04
Data & Network Integration
Situational awareness depends on data moving reliably between sensors, displays, and ground stations. Avcon integrates MIL-STD and commercial data buses, Ethernet mission networks, and encrypted data-link systems — tested and certified to operate in the airborne environment.
05
Structural Modifications & Airframe Integration
Every system integration starts with an airframe that can carry the load. Avcon's structural engineers design and certify belly pods, antenna fairings, cargo provisions, door modifications, and custom equipment racks — providing the physical foundation that mission systems require.
Requirements In. Certified Aircraft Out.
Avcon works from customer mission requirements, translates them into an engineering design, coordinates with FAA Designated Engineering Representatives (DERs), and delivers a Supplemental Type Certificate that allows the modification to be reproduced across an entire fleet.
Ready to Scope Your Integration Program?
Bring us your mission requirements and we'll bring the engineering expertise. Our team has decades of experience turning complex multi-system installations into certified, reproducible aircraft configurations.
